| 5225 Series With Hook Right Angle 90 Degrees 6P6C Single RJ11 Modular Jack Port Connector |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | ﹣40℃ to +85℃ |
| 10. Storage Temperature | ﹣40℃ to +85℃ |
| 11. Housing Material | PBT |
| 12. Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| 13. Contact Mating Area Plating | Gold/3u"/6u"/15u"/30u" |
Product Specification:
| Specification: | RJ11 Jack | Cross Part NO: | 52B-166111X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab up | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product application:
Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch ...
Competitive prices and services:
More competitive prices than pulsed Tico halos and aphorol
Delivery time: 2-3 weeks after order
Samples provided free of charge
New designs to meet customer requirements
DHL UPS DEDEX or TNT reduces shipping costs by 90%
Why choose us:
- Equipment and manufacturing ability for mould
- Competitive price , and in time delivery well-selling in both domestic and foreign markets
- Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
- Specializes in the development , design , production and sale of communication network connectors .

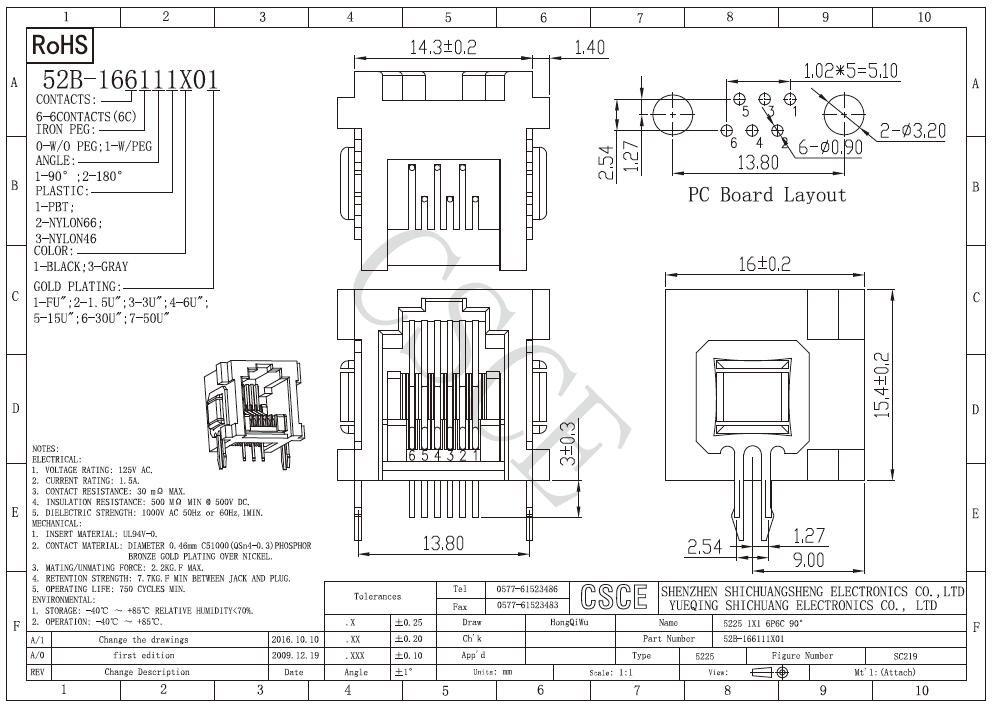

Product Drawing:
Product Tags:
|
|
Right Angle RJ11 Shielded Connector , Single Telephone Keystone Jack With Hook Images
|
